CNC Boring and Milling Machines
-

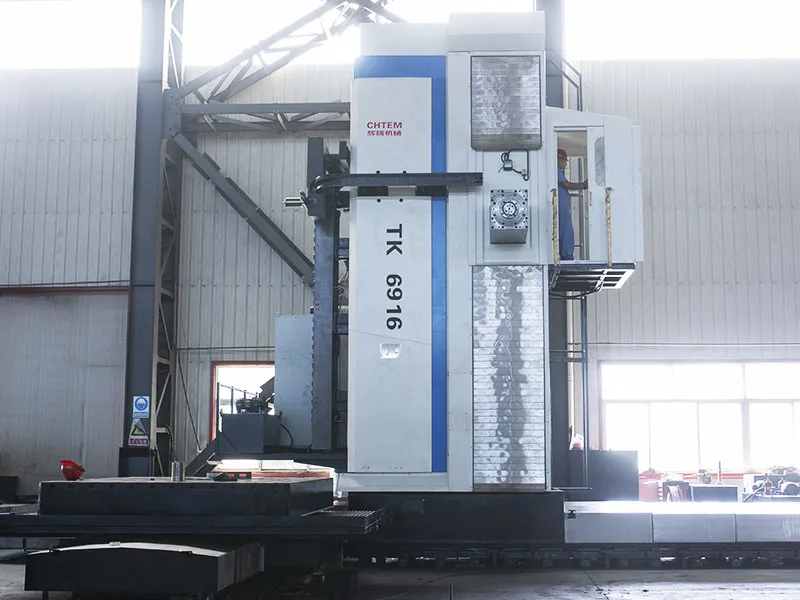

CNC Floor Type Boring Mill (Boring and Milling)
This machine is suitable for the machining of large-scale components in industries such as metallurgy, mining, energy and power generation (wind, thermal, nuclear), shipbuilding, steel production, and transportation equipment manufacturing.
-
- Each axis is driven by its own dedicated servo motor, allowing for stepless speed regulation.
- Under the control of the CNC system, arbitrary four-axis simultaneous linkage can be achieved, thereby satisfying the processing requirements for various workpieces.
- The main machine is equipped with a rotary table and features a cross-slide structure. It is composed of several major components including the bed, worktable, upper and lower saddles, column, a side-mounted horizontal spindle box, and a tailstock.

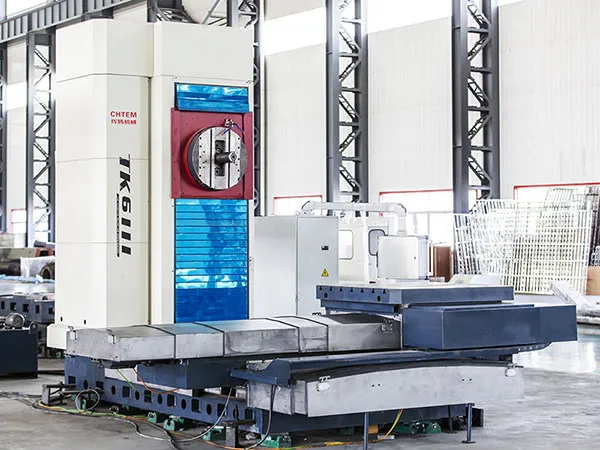

CNC Table Type Boring Mill (Boring and Milling)This machine is widely used for the machining of box-type components, frame structures, and mold parts.
Model Spindle Speed (rpm) Spindle Diameter (mm) Spindle Travel (W-Axis) (mm) TK6111 2-2000 ∅110 600 TK6113 2-2000 ∅130 800 -

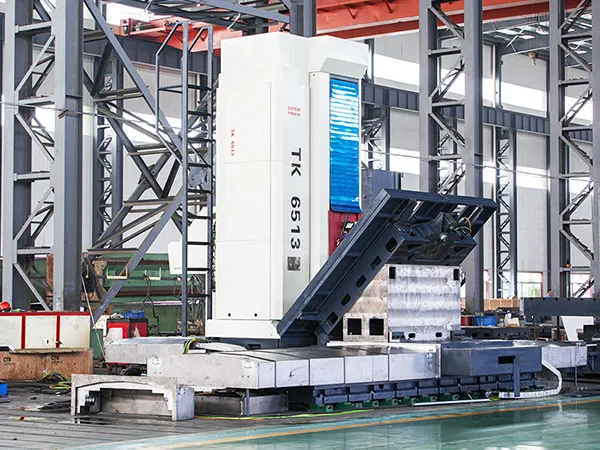

CNC Planer Type Boring Mill (Heavy Duty Boring Mill)
CNC planer type boring and milling machine is suitable for the processing of large and medium-sized box-type parts, frame-type components, and mold parts.
Model Spindle Speed (rpm) Boring Spindle
W-Axis Travel (mm)Ram
Z-Axis Travel (mm)TK6511 10-2000 600(Z-Axis) / TK6513 2-2000 1000(Z-Axis) / TK6516 2-2000 1000(Z-Axis) / TK6813(Features a ram) 2-2000 800-1000 800-1000 TK6816(Features a ram) 2-2000 800-1000 800-1000 -
CNC Gantry Boring Mill (Fixed Gantry, Moving Table)
This machine is used for multi-variety, small to medium batch processing of precision complex parts in medium to large-scale automotive cold stamping die manufacturing, as well as in the aerospace and equipment manufacturing industries.
Model Distance Between
Columns (mm)Max. Load
Capacity of Worktable (T)GMH2412/2112 1800 2 GMH2416/2116 2200 5 GMH2420/2120 2600 5 GMH2425/2125 3100 8 GMH2430/2130 3600 8 GMH2435/2135 4100 8 GMH2440/2140 4600 10 -
CNC Gantry Boring Mill (Moving Gantry, Fixed Table)
Ideally suited for multi-variety, small to medium batch processing of precision and complex parts in medium and large automotive cold stamping dies, as well as the aerospace and equipment manufacturing industries.
Model Distance Between Columns (mm) Pass Height (mm) Max. Load Capacity of Worktable (T) XKH2825/2725
GMH2825/27253200 2500 15 XKH2830/2730
GMH2830/27303600 3000 15 XKH2835/2735
GMH2835/27354200 3500 20 XKH2840/2740
GMH2840/27404600 4000 20 XKH2845/2745
GMH2845/27455200 4500 20 XKH2850/2750
GMH2850/27505600 5000 20
